Inserting Tools

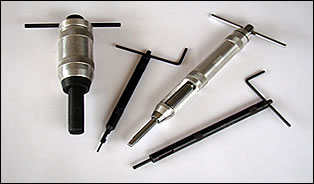

NAG FASTMAN Prewinder Inserting Tools

Prewinder Inserting Tools are used for FASTMAN Screw Thread Insert installation. These inserting tools are suitable for both Standard (free running) and Screw Lock Inserts.

To use FASTMAN Prewinder Type Inserting Tool, retract mandrel and place insert in chamber with tang end towards threaded tip.

Advance the mandrel until slot fully engages the insert tang. Rotate and advance the mandrel until the mandrel protrudes 1 mm from the tip.

Hold tool firmly and squarely against work and install insert into tapped hole by rotating mandrel at a slow, uniform rate, until the top coil of the insert is 1/4 to 1/2 turn below top surface of hole.
